Ibiza & Bridges – Part 1

This is the first of currently three locations used for a private IBL (Image Based Lighting) and Autodesk Maya project dealing with car renderings called Ibiza & Bridges.

Ibiza at Sindlinger Mainbrücke

The idea of this virtual publicity campaign is to present the Seat Ibiza car driving on and standing under different bridges with car paints chosen according to the actual location.

Screenshot Google Earth

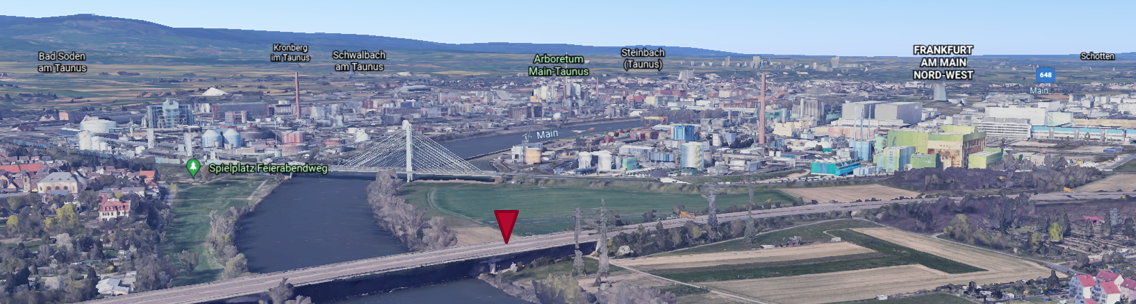

Google Earth screenshot of the Sindlinger Mainbrücke

This first location is underneath the Sindlinger Mainbrücke near Frankfurt with a lot of graffities on the four concrete supporting columns.

On Location
Panorama work on location

On location just the full spherical panorama was shot in HDRI mode to be used for IBL lighting in the final Maya scene. Important was the correct measuring of the environment to know the position as well of the camera as the columns of the bridge as reference objects for eventually neccessary tweaking of he final camera parameters.

Panorama at car position
Panorama shot at designated car position

The 360° panorama was shot with a Canos EOS D60 with a Walimex 8mm fish eye lens. The panorama contains seven bracketing rows (zenith, five equator shots, nadir and offshot) consiting of seven different exposures each (2 EV steps). Stiching was done with PTGui 12.7.

Reference objects
Setting up reference objects in Autodesk Maya (measurements left, final tweaking right)

Measured camera and environment parameters were transferred to the Maya scene and final parameter tweakings performed by bringing the concrete columns in a correct final position in the foreground of the backplate photography.

Replaceing reference objects with rendering meshes

Afterwards reference objects were replaced by the designated final meshes. The Seat Ibiza model was taken from Hum3d, the cutout image of the skateboarder was taken from www.pikpng.com.

Original (left) and post production (right)

Post production consists of some color adaptations and preset filters only done with www.pixlr.com.

Second Rendering of the scene
